The design of LED traffic control signal circuits must follow strict rules for safety and reliability, clear timing, stability and durability, and fault protection. It must also meet national standards and the conditions of the roads where it will be used. Here are the main requirements.
1. Timing logic
Follow the set cycle of red light → green light → yellow light exactly, and don’t let red and green lights go on at the same time to keep traffic from getting out of control. LED traffic control signals need to have accurate timing circuits, and the timing for straight-ahead, left-turn, and pedestrian signals needs to be separate and controllable. Switching phases should be smooth and without problems. It should support fixed timing or basic sensor triggering to keep traffic moving smoothly at intersections.
2. Electrical safety and reliability

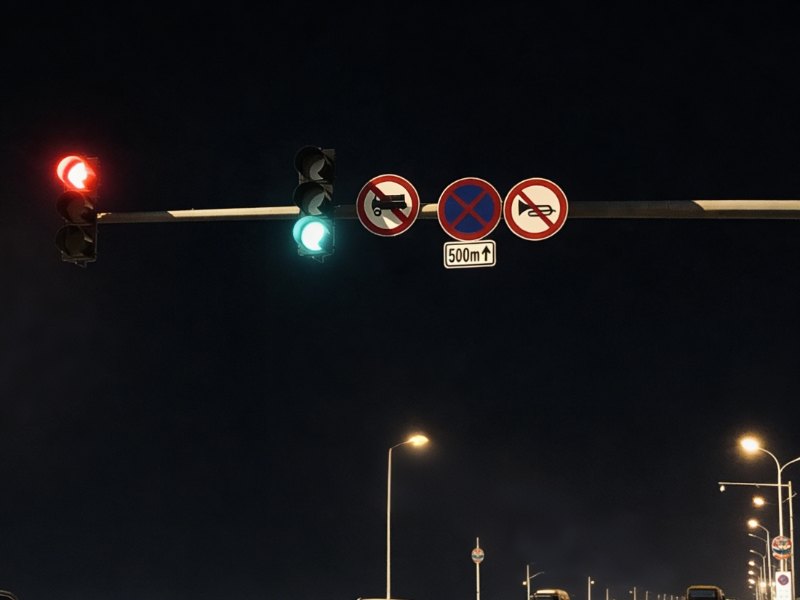

Use an AC220V main power supply with a DC drive scheme that includes lightning protection, surge protection, and overcurrent fuses. Constant current drives LED beads, which keeps the voltage stable and uses less power. The LED smart traffic signals have good insulation, flame-resistant and anti-aging wiring, and outdoor parts that are waterproof and dustproof. This means they can work for a long time in harsh conditions like high and low temperatures and high humidity.
3. A mechanism for automatically protecting against faults
Short-circuit, open-circuit, overvoltage, and overtemperature protection are all built into the LED smart traffic signals. If one light group has a problem, it won’t affect the whole system. It automatically goes into safety mode, like flashing all the yellow lights or keeping a red light on all the time, to stop signal loss and control failure in case of serious problems. Fault monitoring makes it easy to fix problems and keep things running smoothly.
4. Stable control circuit
A microcontroller, digital timing circuit, or PLC can be used as the simple core control. It has clear program logic and strong anti-interference features. The circuit layout is reasonable, and the wiring is standardized to reduce electromagnetic interference. Industrial-grade components are used, ensuring long lifespan and good consistency, reducing the risk of malfunction.
5. Display and brightness meet standards
The LED smart traffic signals have uniform brightness and standard color (red 620nm, green 505nm, yellow 590nm), providing a long viewing distance and no noticeable flicker. It features adaptive brightness, ensuring clear visibility during the day and non-glaring illumination at night, meeting national standards for road traffic signals.
6. Structural ease of maintenance
LED traffic control signal circuits feature a modular design, separating the driver, control, and power supply for easy installation, replacement, and maintenance. Wiring is robust and reliable, with waterproof connectors and heat dissipation design, ensuring continuous and uninterrupted operation and guaranteeing road safety.
