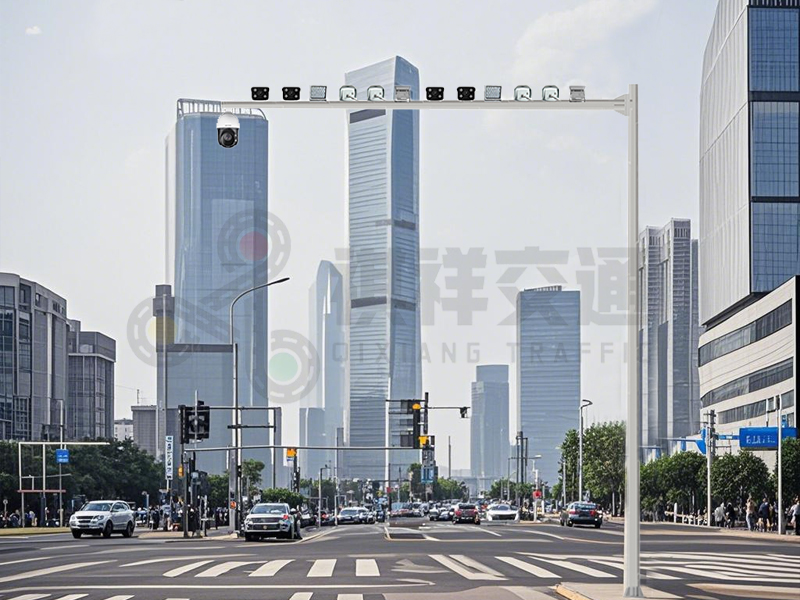

Usually, the specifications of monitoring poles vary depending on the use environment and needs. Generally speaking, monitoring poles are mainly used in places such as traffic roads, intersections, schools, governments, communities, factories, border defenses, airports, etc., where monitoring cameras are required. Today, the monitoring pole factory Qixiang will talk about how to choose a pole.
Monitoring pole specifications
1. Material:
Q235 steel or aluminum alloy is generally used.
2. Height:
The height of the pole is determined according to factors such as the monitoring area, field of view, and equipment installation height, generally between 3m-12m.
3. Wall thickness:
The wall thickness is generally determined according to factors such as the height of the pole and the environment, generally between 3mm-8mm.
4. Diameter:
The diameter is generally determined according to the size of the camera, generally between 80mm-150mm.
5. Wind pressure:
The wind pressure coefficient of the pole needs to be determined according to factors such as geographical location and wind zone, generally between 0.3-0.7, to ensure that the pole is not easily deformed or collapsed under strong winds.
6. Load-bearing capacity:
The load-bearing capacity of the pole needs to consider the weight of the equipment itself as well as factors such as wind load and snow load, which is generally between 200kg and 500kg.
7. Earthquake resistance:
In earthquake-prone areas, it is necessary to select poles with earthquake resistance to reduce the impact of earthquakes on the monitoring system.
8. Budget:
When purchasing, you should not only consider the price of the monitoring pole, but also pay attention to its cost-effectiveness. High-quality monitoring poles may be more expensive, but they are also more stable and durable, and can provide more reliable support for the monitoring system. Therefore, try to buy cost-effective products within the budget.
With many years of accumulated monitoring pole manufacturing experience and technical reserves, the monitoring pole factory Qixiang can not only provide standard solutions that meet national standards, but also deeply optimize the design for special scenarios (such as strong wind areas and smart city projects), creating a safe, reliable and technologically advanced monitoring pole solution for you.
Tips
1. Without special circumstances, all embedded parts of the monitoring poles are made of C25 concrete, and the steel bars are in line with national standards and wind requirements. The cement is No. 425 ordinary Portland cement. The foundation depth shall not be less than 1400mm to ensure the stability of the pole.
2. The proportion of concrete and the minimum cement dosage shall comply with the provisions of GBJ204-83; the threads above the flange of the embedded anchor bolts shall be well wrapped to prevent damage to the threads. According to the embedded parts installation drawing, the embedded parts of the monitoring pole shall be correctly placed to ensure the extension of the arm rod.
3. The flatness of the concrete casting surface of the monitoring pole foundation is less than 5mm/m. Try to keep the embedded parts of the pole horizontal. The embedded flange is 20~30mm lower than the surrounding ground, and then the reinforcement ribs are covered with C25 fine stone concrete to prevent water accumulation.
4. The shape and appearance of the monitoring pole can be customized according to actual needs. Common shapes include octagonal, circular, conical, etc. Octagonal poles are usually better than round poles in wind resistance and appearance. At the same time, the appearance of the monitoring pole can also be customized to meet specific aesthetic needs.
5. The height of the general factory monitoring pole is 3 meters to 4 meters. The electronic card monitoring pole or road monitoring pole on the road is generally 6 meters, 6.5 meters, or even 7 meters. In short, the height of the outdoor monitoring pole is generally determined according to the needs of the site.
The above is the content introduced by the monitoring pole factory Qixiang. If you are interested, please contact us for more information.
